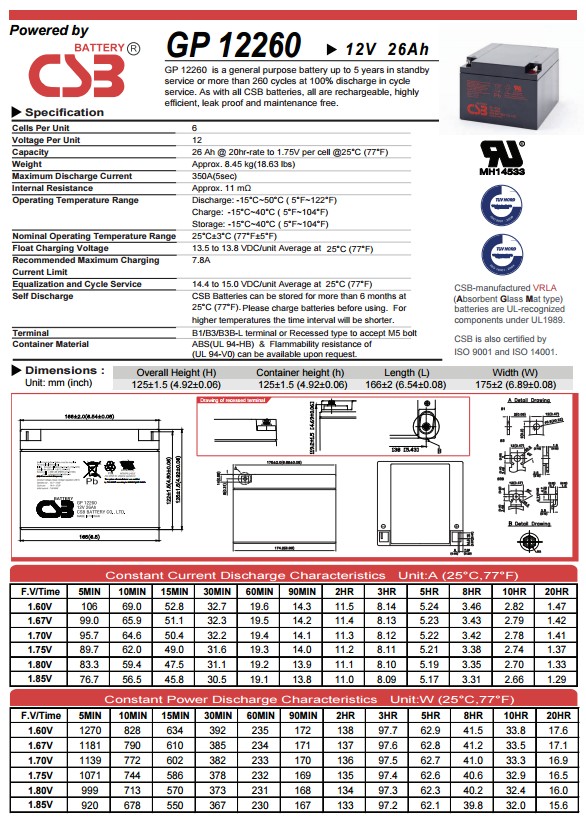

规格书

局数 6 V

电压值 12 V

安培数 26 Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)

重量(kg) Approx. 8.45 kg. (18.62 lbs.)

最大放电电流5秒(A) 350 A (5sec.)

内阻(mΩ) Approx. 9.9 mΩ

温度工作范围 Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F)

一般使用温度工作范围 25°C ± 3°C (77°F ± 5°F)

浮充使用充电条件 13.5 to 13.8 VDC/unit Average at 25°C (77°F)

建议充电最大电流 7.8 A

均充使用充电条件 14.4 to 15.0 VDC/unit Average at 25°C (77°F)

自放电 It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃

端子 B1/B3/B3B-L terminal or Recessed type to accept M5 bolt

电槽组材质 ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.

定功率放电特性表 单位: 瓦特(25℃,77℉)

终止电压/时间 5MIN 10MIN 15MIN 30MIN 60MIN 90MIN 2HR 3HR 5HR 8HR 10HR 20HR

1.60V 1270.00 828.00 634.00 392.00 235.00 172.00 138.00 97.70 62.90 41.50 33.80 17.60

1.67V 1181.00 790.00 610.00 385.00 234.00 171.00 137.00 97.60 62.80 41.20 33.50 17.10

1.70V 1139.00 772.00 602.00 382.00 233.00 170.00 136.00 97.50 62.70 41.00 33.30 16.90

1.75V 1071.00 744.00 586.00 378.00 232.00 169.00 135.00 97.40 62.60 40.60 32.90 16.50

1.80V 999.00 713.00 570.00 373.00 231.00 168.00 134.00 97.30 62.30 40.20 32.40 16.00

1.85V 920.00 678.00 550.00 367.00 230.00 167.00 133.00 97.20 62.10 39.80 32.00 15.60
